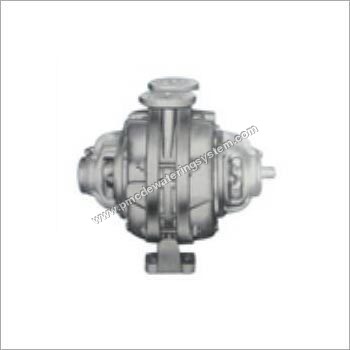

Water Ring Vacuum Pump

Water Ring Vacuum Pump
Water Ring Vacuum Pump
Product Code : Water Ring
Product Description
Our firm is catering to the growing market demands by offering Water Ring Vacuum Pump. It is manufactured with the help of a team of well-trained professionals using qualitative metals and other basic raw materials. Offered pump is appreciated by clients for its durability, robust construction, perfect fitting and high efficiency. We offer Water Ring Vacuum Pump in two different sizes of PM-l and PM-2 so that our patrons can obtain from our company as per their varying needs.

Application area:

  • PMCVacuum Pump for Well Point System
  • Priming of large Centrifugal Pumps
  • Reactors
  • Vacuum Dryers
Salient Features:
  • PMCPumps are Single Stage Double Suction Centrifugal Displacement type
  • Multivane impeller is housed in cylindrical type casing
  • The motor revolving eccentric to casing throws the liquid by centrifugal force on casing to form a liquid ring, which rotates at the rotor speed, forces the water to enter and recede the individual pockets, thus creating vacuum
Technical Specification:

The table given below is the performance of the PMC pump under the operating condition at 1450 RPM:

Pump Model
Suction/Deliver
Max. L/Sec
Discharge M3/Hr.
Max. Vacuum MM (Hg) Inch
Motor Kw/HP
PM-1
40 x 40 mm
22
80
650/25.6
3.7/5
PM-2
50 x 50 mm
80
215
650/25.6
7.5/10

NB: PM-Series Vacuum Pumps are widely used in PMC Dewatering Sets and give outstanding mechanical and hydraulic performance.
